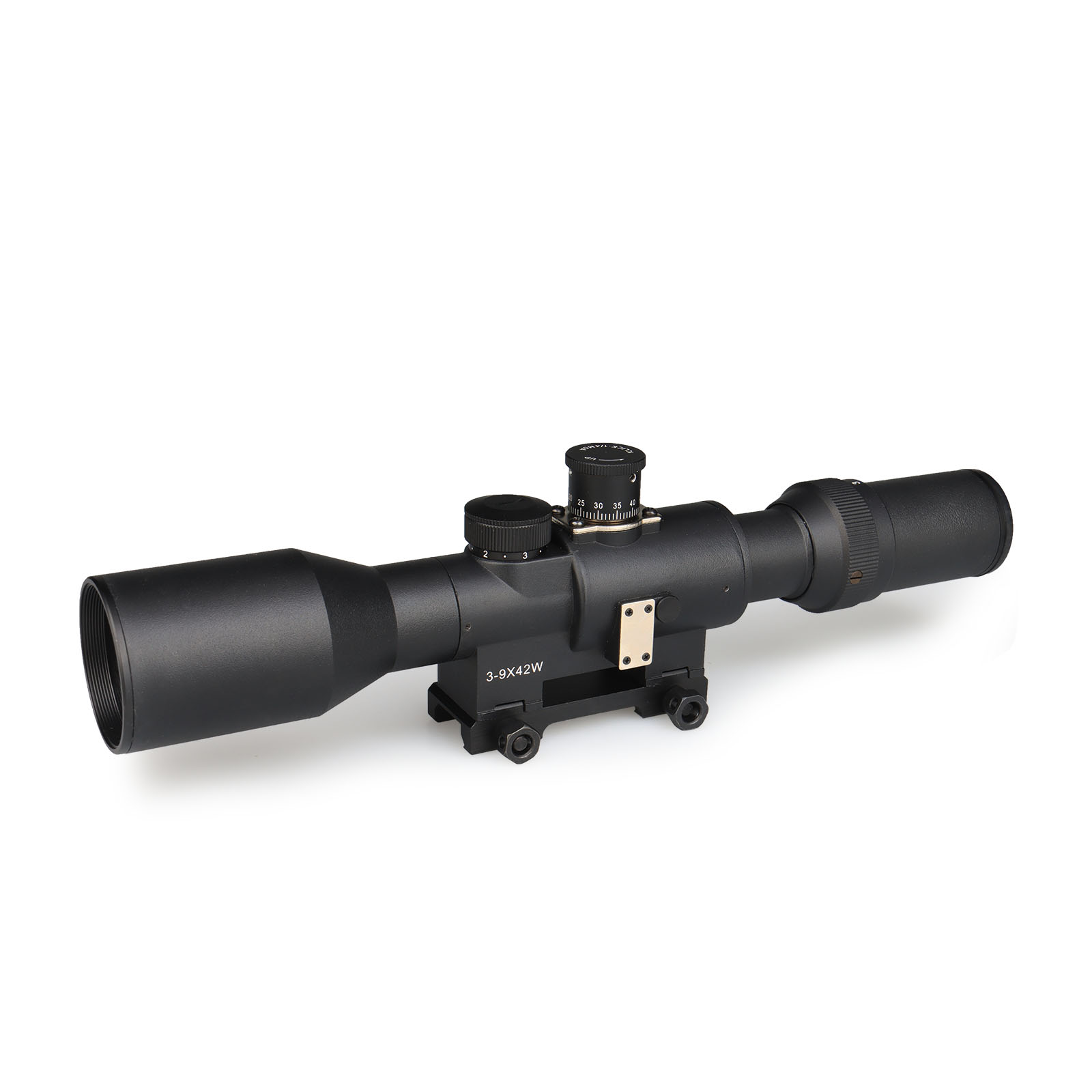

The latest zoomed svd 3-9X42 has a variable magnification from 3 to 9. The scope has magnesium alloy body, which is finished in black. The reticules are illuminated in red, making the contrasting reticule line free of glow, which allows it to be used in dusk conditions.
Reticule:The reticule has a deflection measuring scale graduated from 0~±10 mils at 1 mil smal . intervals and 5 mils large intervals. In the vertical direction of the reticule there are four aiming marks “∧" , the uppermost of which shall be adopted when the range is within 1000m , When the range is 1100m, 1200m and 1300m, the rest three (from the upper to the lower) shall be usedrespectively while the range index shall be set at the position of “10” in advance. in any case, the peak point of “∧" shall be aligned with the target during aiming.
The curved line at the lower left portion of the reticule is used for roughly ranging when the target is 1.7m in height. The numbers on the upper side of the curved line indicate range values inunit of hundred meters. Each end point of the segments of the curved line from right to left corresponds respectively to range values(in unit of meter)of200,225,275,325,375,425,475,525,575,625,675,725,775,825,875,925,975 and 1000. Range can be measuredas follows: Coincide the bottom end of the target with the target base line and locate the contactpoint where the top end of the target touches the curved line, thus the range of the target is approximately estimated.
Model Number |
SVD 3-9X42E |
Function |
Lens |
Type |
RIFLE |
Brand |
YSS |
Objecttive lens |
42MM |
100 Yard field of view |
6°-2.4° |
Exit pupil distanse |
85-73mm |
Click value |
1/4MOA |
Length |
320mm |
Weight |
760g |
Focal plane |
First Focal plane |
Illumination |
Red |
Shockproof |
Yes |
Reticle |
etched glass reticle |
Size |
360*98*90mm |
Weight(total) |
1013g |
